Manufacturer: Williams
Year Released: 1982
PCB Function: IO
Part Number: 5772-09680-00
Stack Type: Separate Boards
Stack Part Number: Robotron
Dimensions: Unknown
Contributed by: Arcadenut
Description:

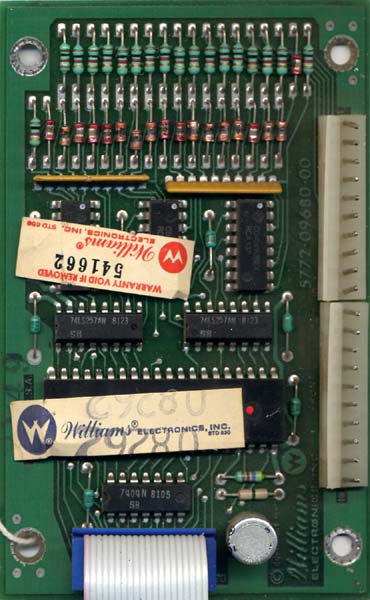

Images courtesy of www.robotron-2084.co.uk
