Pac-Man
Platform: Arcade
Game: Pac-Man   Display Type: raster
Manufacturer: Namco (Midway license)   Resolution (W x H): 288 x 224
Year Released: 1980   Orientation: V
Main CPU: Z80   Audio Channels: 1
# of Players: 2   # of Buttons: 0
# Simul. Players: 2P alt   Genres: Maze

Controls: 4 way Joystick

MAME Driver Status: good   MAME Driver Emulation: good
MAME Driver Sound: good   MAME Driver Color: good
MAME Driver Graphics: good
MAME Source File: \src\mame\drivers\pacman.cpp
A082-91383-B000
A082-91383-B000
A082-91384-8000
A082-91384-8000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000
A082-91375-B000

Dip switches used by this game

The link below will take you to another page that shows all the dip switch settings for this game.  Dip Switches have their own page to make it more printer friendly.
Pac-Man Dip Switch Settings


Memory Map for this game

If you need a memory map for your game that you are working on repairing, you can view that with the link below.
Pac-Man Memory Map

ROMS used by this game

The following is a list of ROMS that are used by this game.  Many games had multiple versions of ROMS.  If you are not sure which version of ROM you have, you can use the ROM Identification Page to upload an image and find out.
Rom Name Ascending
Rom Size
SHA1
CRC32
Fluke 9010A Signature
Location
Expand Pac-Man (Midway) found in MAME ROM Set: pacman Released in 1980 in the zip file woodpeck.zip
Expand Pac-Man (Midway, harder) found in MAME ROM Set: pacmod Released in 1980 in the zip file woodpeck.zip

PCBs for this game

The following is a list of the PCB's used by this game.  Many games had multiple versions of the different PCB's.  For more detailed information about a PCB, click on the Part # link for that PCB.
Part Number
Description
Stack Part Number
Pcb Function
Contributor

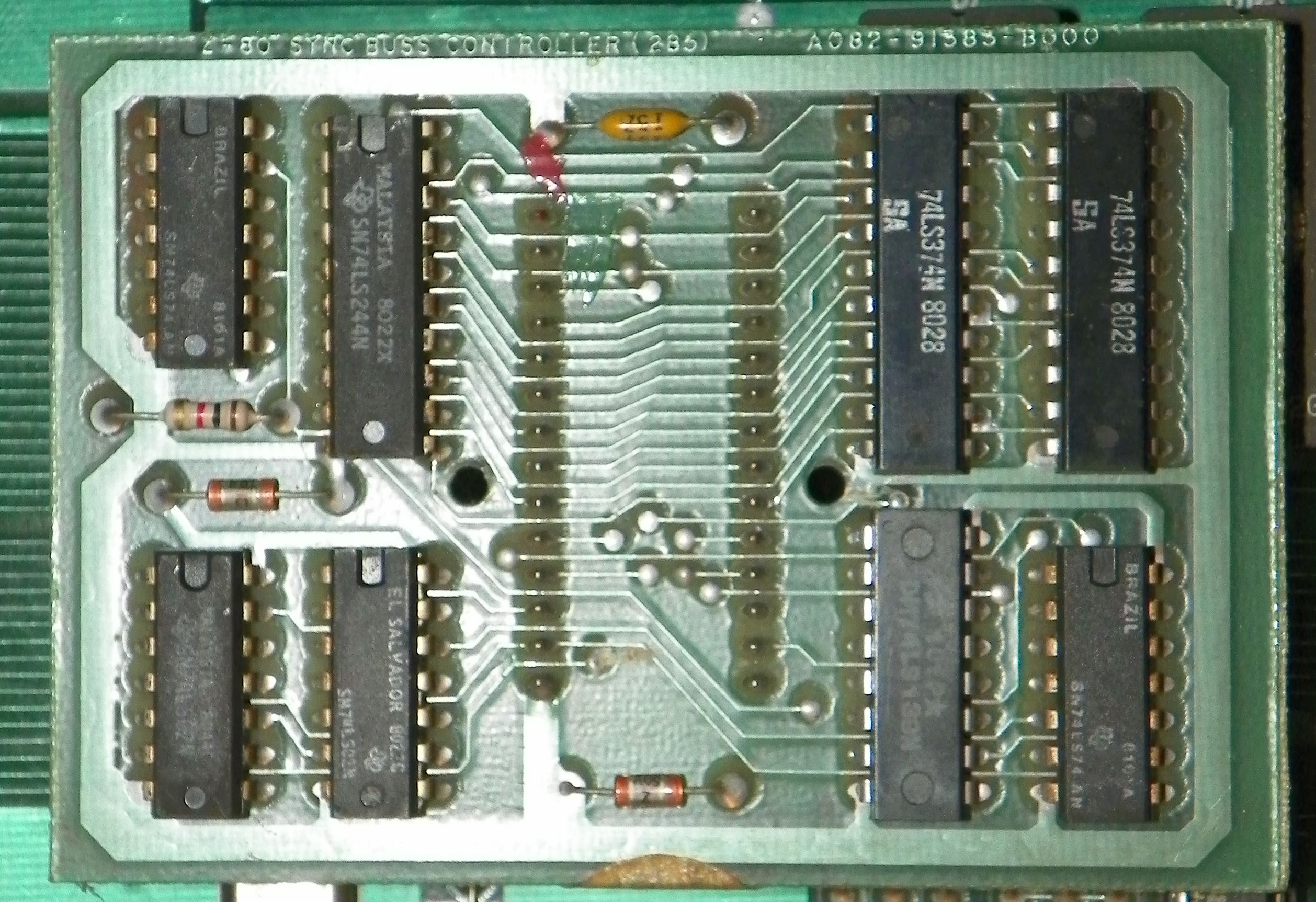

A082-91383-B000 Z-80 SYNC BUSS Controller (285)Pac-ManDaughterBoardArcadenut

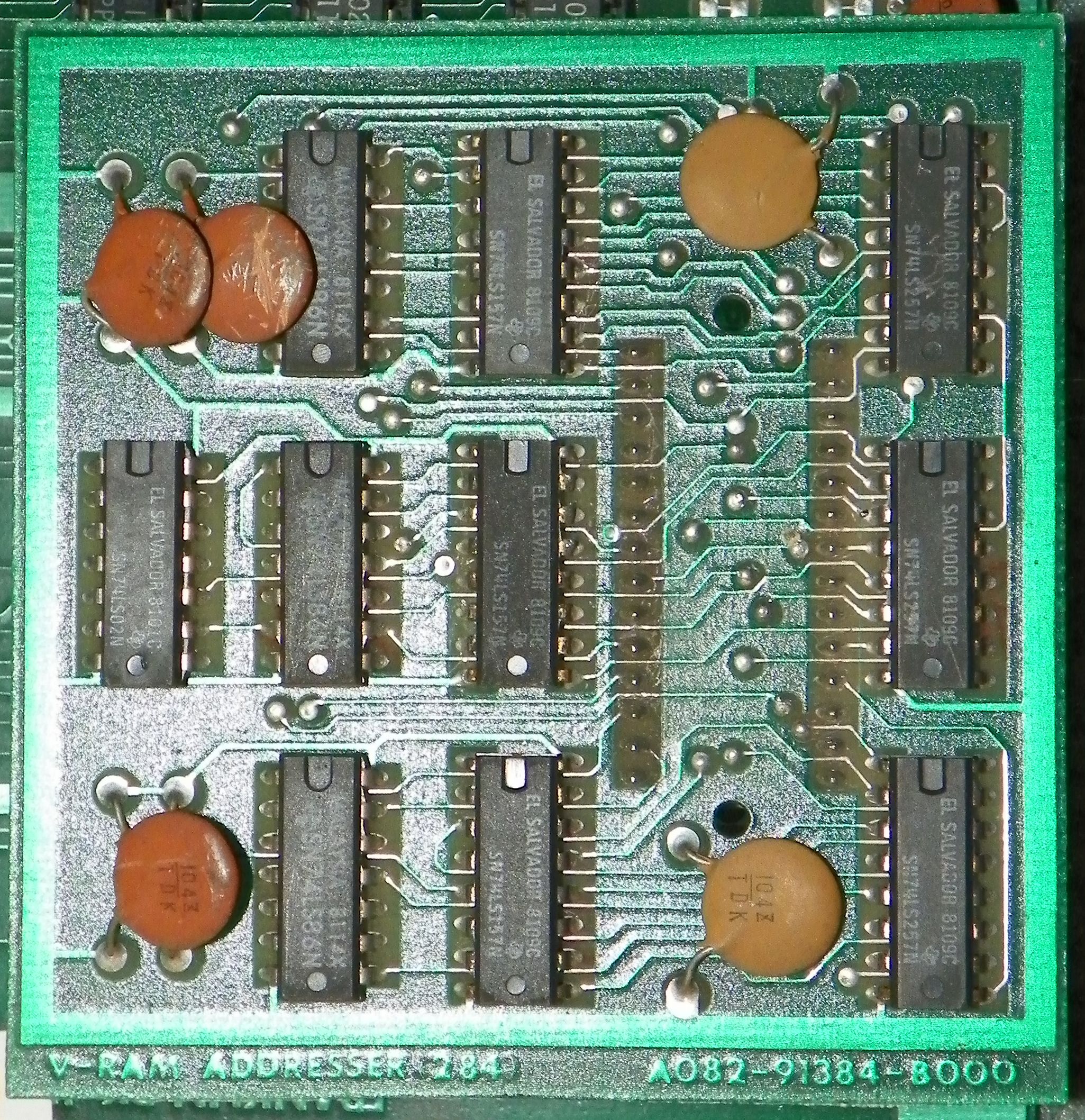

A082-91384-8000 V-RAM Addresser 284Pac-ManDaughterBoardArcadenut
A082-91375-B000  Pac-ManEntireGameArcadenut

Parts for this game

The following is a list of the Parts that can be used by this game.  Many games used the same parts.  For more detailed information about a Part, click on the Part # link for that Part.
Part Number
Part Type
Description
Manufacturer
Part Group
No data to display

Repair Logs for this game

The following is a list of the Repair Logs for this game.   For more detailed information about a Repair Log, click on the Title link for that Repair Log.
Title
Symptom
Solution
Status
Game does not boot Game will not boot. The game actually did boot, it's just that you cannot make anything out.  Turns out that the EPROM at 5E was bad. Replaced that and we now have a working Pac-Man. Fixed
Page 1 of 1 (1 items)< < Prev1Next > >
