This information is provided "as-is" without warranty. If you find any errors please contact me.

Help improve the database! Sign up today and start contributing!

Monitor

Manufacturer:	Wells Gardner
Year Part Released:	Unknown
Part Number:	WG4901
Part Classification:	Original Part
Part Group:
Weight:
Dimensions:	Unknown
Contributed by:	Arcadenut

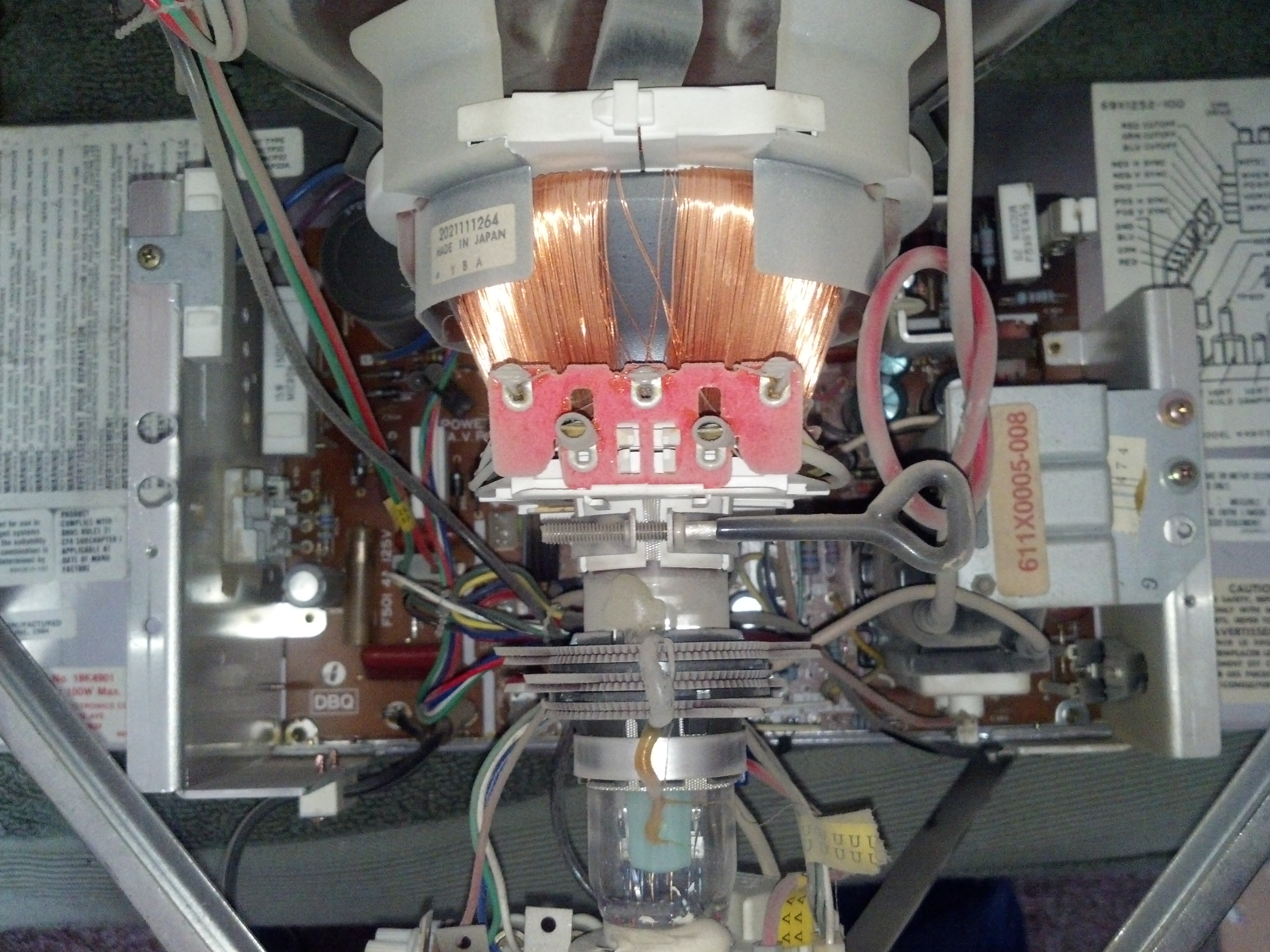

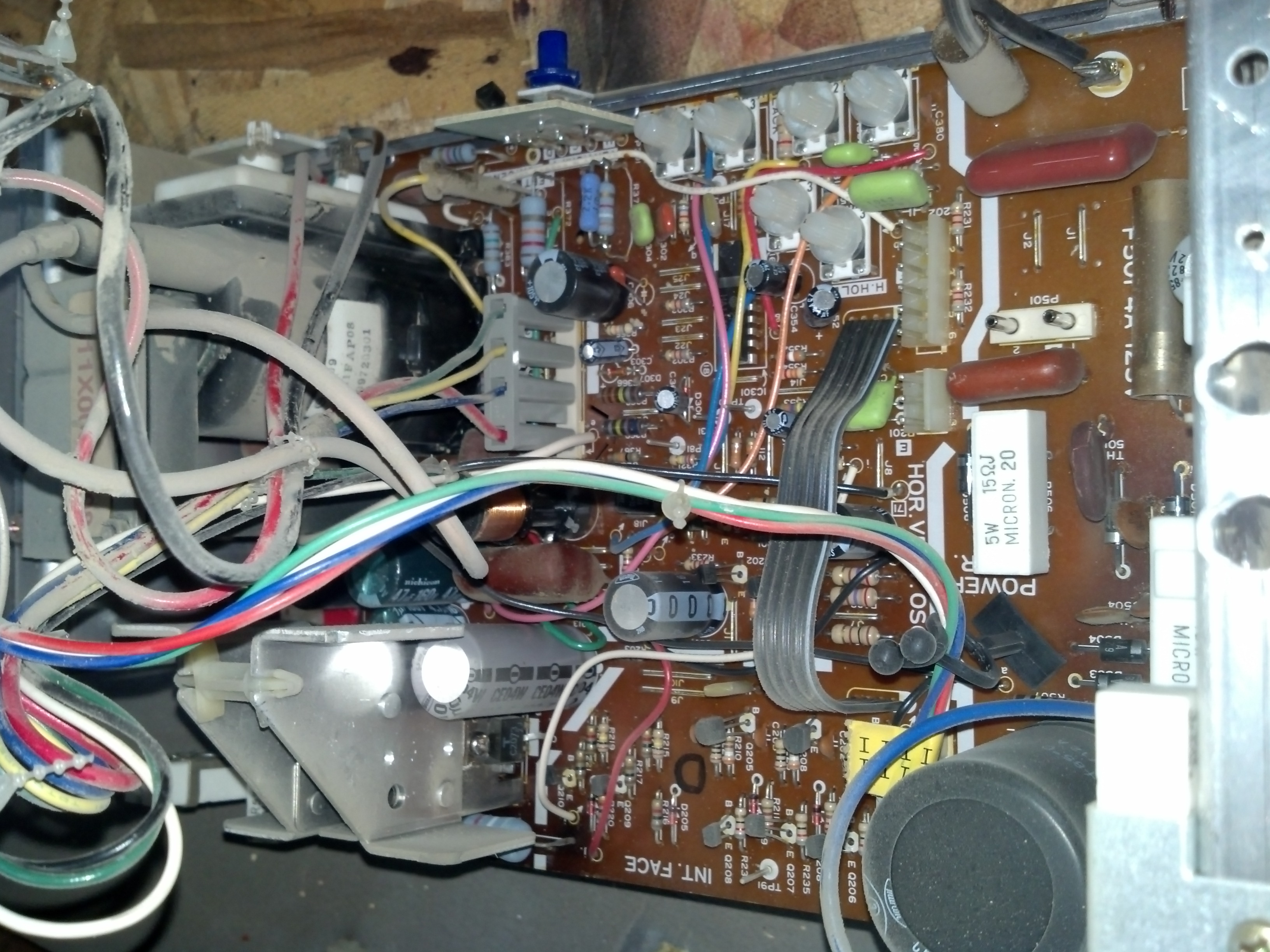

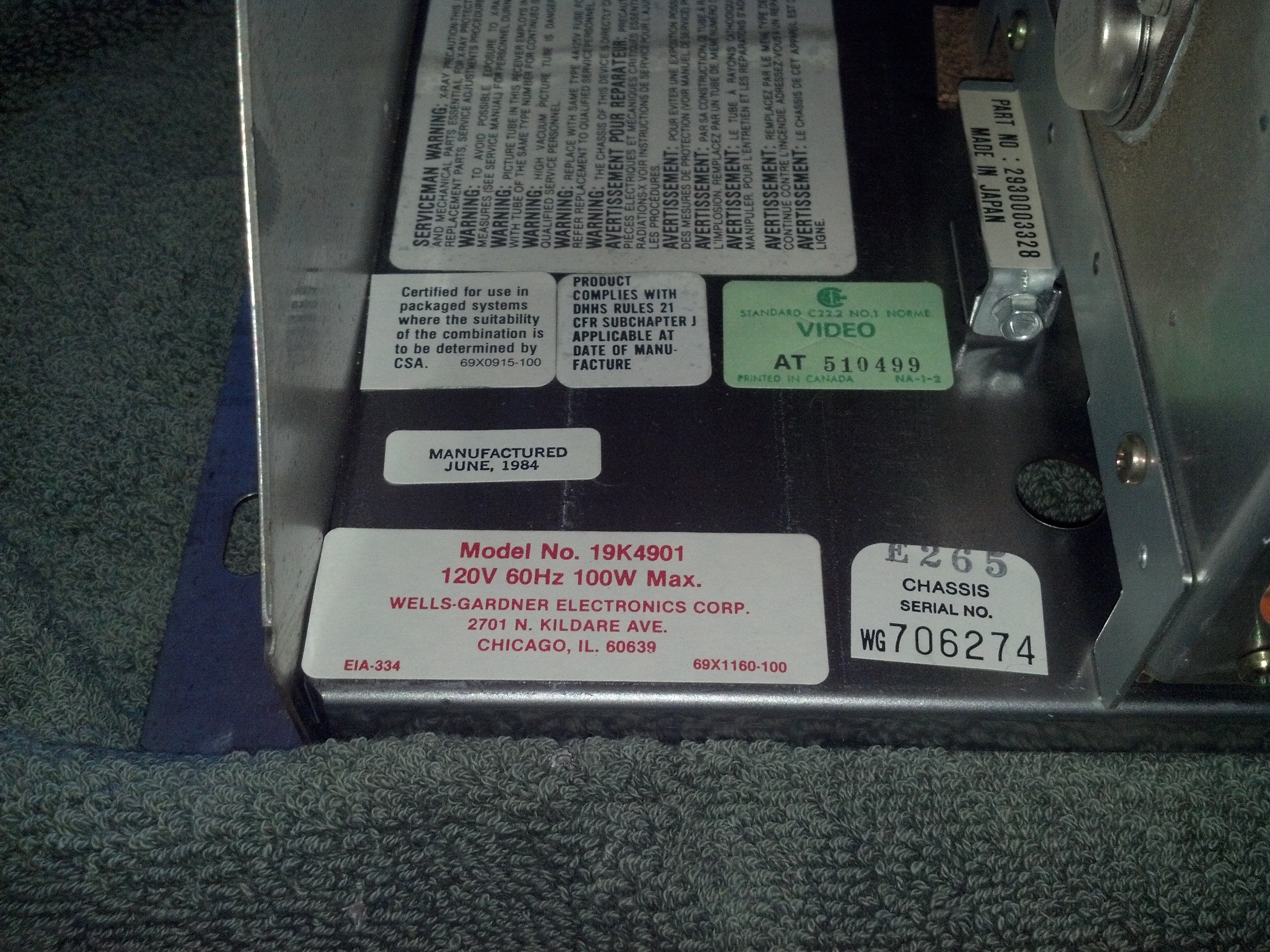

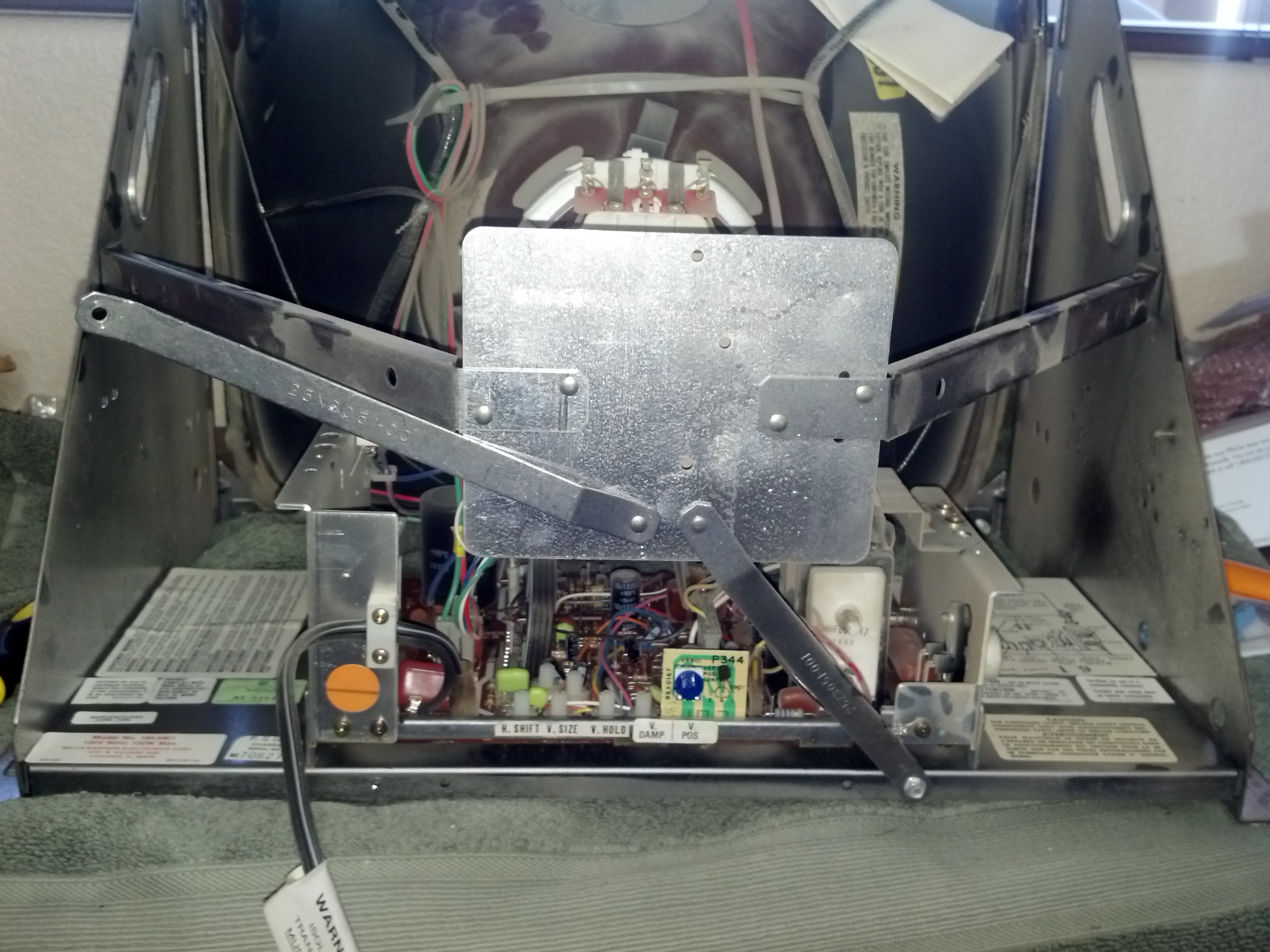

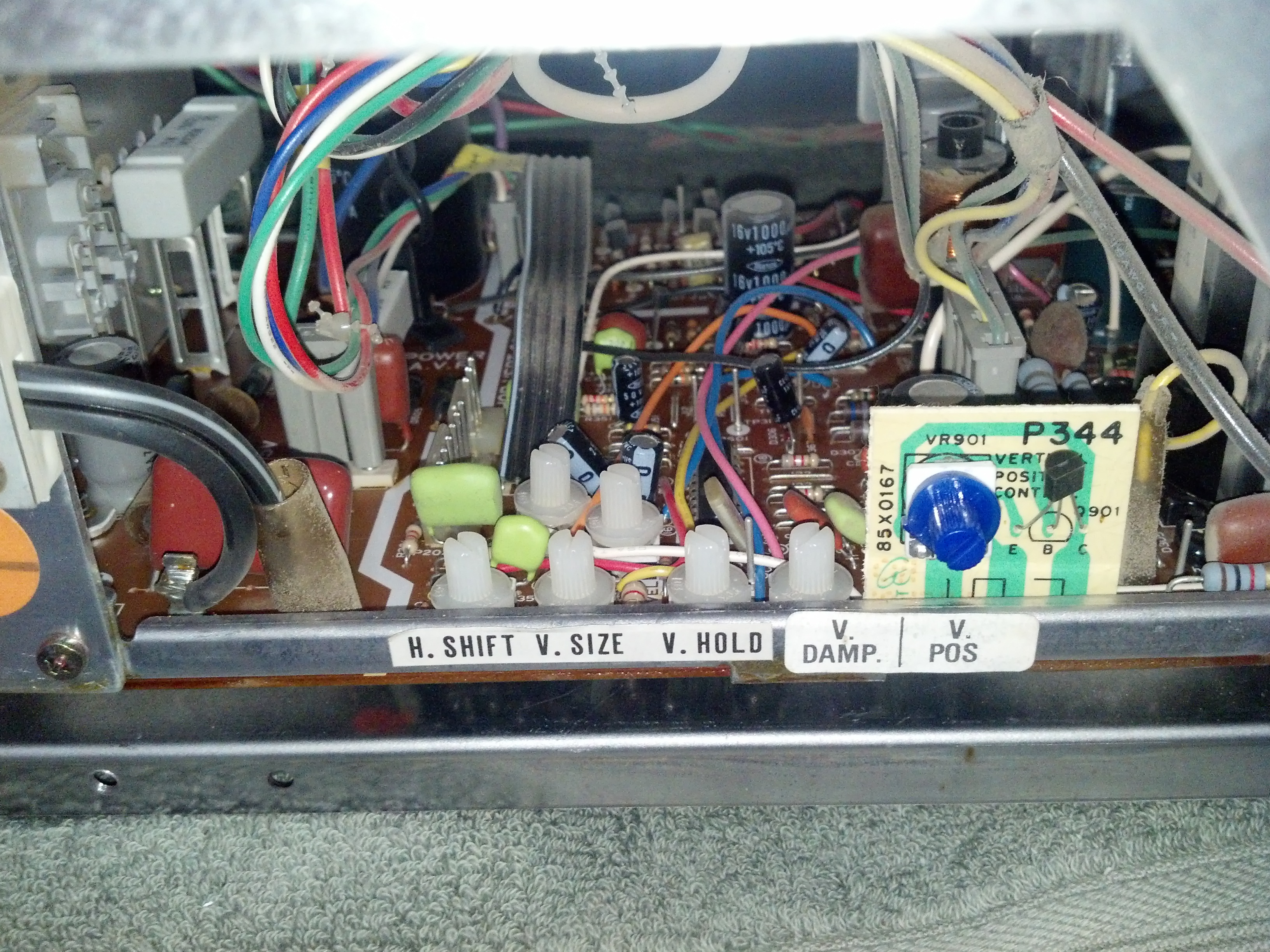

Description: Images courtesy of Krajkerjac.

This part works with the following games:

Game

Manufacturer

Year Game Released

Notes

No data to display

No data to paginate< < PrevNext > >

Repair logs for this Part:

Title

Symptom

Solution

Status

Vertical Collapse

Monitor has a solid white line through the center of the monitor (horizontally).

If you smacked the side of the monitor (gently) it would show the full picture briefly. This was an indication of a cold solder joint. Reflowing the solder on several suspect components (Q302, Q301, a couple of Caps), near the Vertical section of the board fixed the issue.

InProgress

Page 1 of 1 (1 items)< < Prev1Next > >
